Ideal Logic+ Combination Boilers

The Logic+ is the flagship range of high efficiency boilers from Ideal.

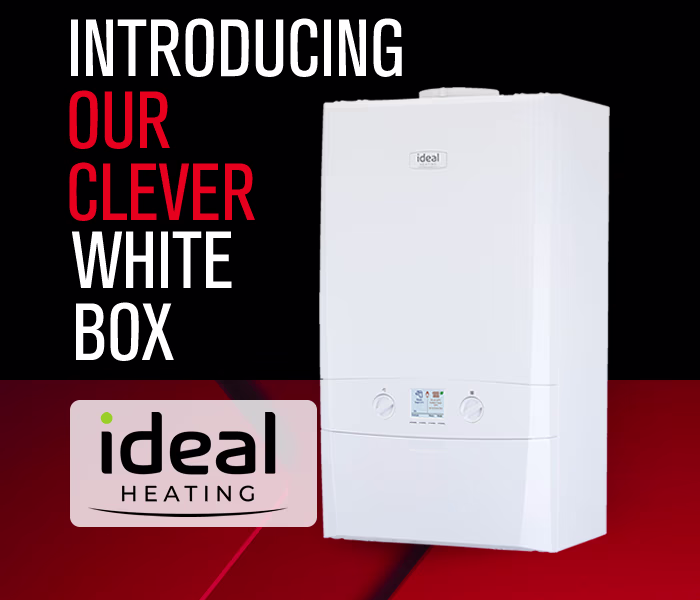

Ideal Logic+ Boiler

Compact in size and fully modulating down to as low as 4.8kw, the Logic+ provides excellent energy savings making it the perfect choice for new or replacement installations.

Siting a Logic+ boiler is quick and simple thanks to a telescopic flue, fast fix flue turret connections and zero compartment ventilation, which allows neat installation into a standard kitchen cupboard.

The Logic+ range has been designed to ensure a quick and hassle-free installation. Benefiting from concealed connections and comprehensive controls, all models also feature a translucent condensate siphon to allow any debris to be spotted quickly and easily.

Thanks to unrivalled levels of reliability, the Logic+ range of boilers comes with a 10 year warranty and is supported by the Queen's Award for Enterprise 2013, Good Housekeeping Reader Recommendation and Product of the Year award 2014.

The Logic+ combination boiler range is available in 24, 30 and 35kW outputs.

Logic+ Boiler Features and Benefits :

  • Designed, developed and made in the UK

  • Compact cupboard fit

  • Low lift weight (starting from 28.5kg)

  • Wide range of additional flueing options

  • PRV wall outlet pipe included

  • Energy Saving Trust endorsed

  • Fully modulating operation to low outputs

  • Concealed pipe connections

  • Honeywell gas valve

  • Boiler frost protection

  • Preformed copper tails

  • Universal condensate connection

  • Large colour screen and simple user interface

  • Reduced running costs due to class leading efficiency

  • Halo thermostat compatible

  • Built-in frost protection

QUEEN'S AWARD

QUEEN'S AWARD

GOOD HOUSEKEEPING

GOOD HOUSEKEEPING

MADE IN UK

MADE IN UK

10 YEAR WARRANTY

10 YEAR WARRANTY*

ABC DIAGNOSTICS

ABC DIAGNOSTICS

COMPACT

COMPACT

FROST PROTECTION

FROST PROTECTION

FLUE VARIANTS

FLUE VARIANTS

FLUE VARIANTS

NOX CLASS 5

ERP HEATING AND HOT WATER COMPLIANT

ErP COMPLIANT

Logic+ Boiler Range Specifications

Specification Logic+ 24 Logic+ 30 Logic+ 35
SEDBUK rating (2009/2012) 89.6% 89.6% 89.6%
ErP rating for Central Heating A A A
ErP rating for Hot Water A A A
Boiler dimension (HxWxD in mm) 700 x 395 x 278 700 x 395 x 278 700 x 395 x 278
CH Output(kW) min /max mean 70ºC 4.8 - 24.2kW 6.1 - 24.2kW 7.1 - 24.2kW
Maximum flow temperature 70°C 70°C 70°C
Domestic hot water flow rate (at Δ35˚C) 9.9 l/min 12.4 l/min 14.5 l/min

Halo Combi Wi-Fi Thermostat

Designed specifically to work with your Ideal Boiler, Halo Combi Wi-Fi allows heating control anytime, anywhere through the flexible and intuitive Halo app. Packed full of features such as geolocation and compatibility with smart home assistants such as Amazon Alexa and Google Home, Halo provides smart, intelligent heating control. Whether you want to adjust your heating schedules, turn up your heating remotely or turn down your heating when you're running late, the intuitive and easy to use Halo app allows you to access your heating from any location.

  • Easy App set up walkthrough to get started

  • Large, clear, colour screen

  • Simple dial and button interface, easy and intuitive for everyone to use

  • Direct connection from Smart Interface to home Wi-Fi, no additional gateway

  • Smart Support from Ideal Customer Service
